Brand Name : Neutral/OEM/Takfly
Model Number : MPO-CS Patch Panel
Certification : CE/ROHS/REACH/CPR/ISO9001/ISO14001
Place of Origin : Shenzhen, China
MOQ : 1
Price : Negotiable
Payment Terms : Western Union, L/C, T/T, Paypal
Supply Ability : 100PCS/Day
Delivery Time : 3-7working days
Packaging Details : PE bag
Cores : 256 Cores, Max. 512 Cores
Fiber Type : SM; MM
Length : Customized available
Cable Diameter : 0.9mm; 3.0mm
Connector Type : CS, MPO, MTP, LC
Cable Jacket : LSZH, and others
Cable Color : Yellow, or customize
Application : Data Center, Telecom, Networks, FTTH
Product Name : Fiber Optic MP-CS Patch Panel
Other Fanout Way : Available to choose
1U 128F MPO-CS Connector Rack Mount Fiber Optic Patch Panel
Fiber Optic MPO-CS Patch Panel Name:
1U 19 Inch 128F MPO-CS Patch Panel
Fiber Optic MPO-CS Patch Panel Description:
1U 256 Cores, and 2U for max 512 Cores MPO-CS Fiber Optic Patch Panel.
This type MPO-CS Patch Panel is designed to manage and house easy-plug MTP / MPO to LC fiber cassette modules, for connecting plug-and-play pre-terminated high density MTP / MPO Fiber cabling system.
Each MPO-CS cassette can hold 64 cores, 1U panel with 4 cassettes by 256 cores; while for 2U can reach max 512 cores. Another advantage is with small size, which is 40% size lesnn than the common LC connector, and it can save 30% panel space than LC Duplex connector.
Fiber Optic MPO-CS Patch Panel Features:
Up to 4 Small MPO-CS modules in 1U; Max for 512 Cores for 2U |
40% size less than common LC connector |
1.25mm Ferrule applicated |
Save 30% Panel space than LC duplex |
Connector with pull bar, easy to use |
Multiple adaptor options available |
Accepts loose tube, distribution and pre-terminated cables |
ROHS, REACH SvHC and UL rated |
Fits standard 19 inch size |
Fiber Optic MPO-CS Patch Panel Applications:
Fiber Optic MPO-CS Patch Panel Specifications:
Size | 1U (44mm); 2U |
Number of Ports | 4; 8 |
Width | 482mm |
Depth | 380mm |
Net Weigh | 3kgs |
Packaged Weight | 3.5kgs |
Material | 1.2mm Cold-rolled steel |
Material Coating | Powder coating |
Color | Black |
Designed in Accordance With | TIA/EIA 568.C, ISO/IEC 11801, EN50173, IEC60304, IEC61754,EN297-1 |
Compliant to | RoHS, Reach/SVHC |
Why choose TAKFLY--Advantages as follows:
Professional manufacturer:
Quality Control:
Delivery:
Price: If your QTY is big, the price could be negotiated.
![]() |

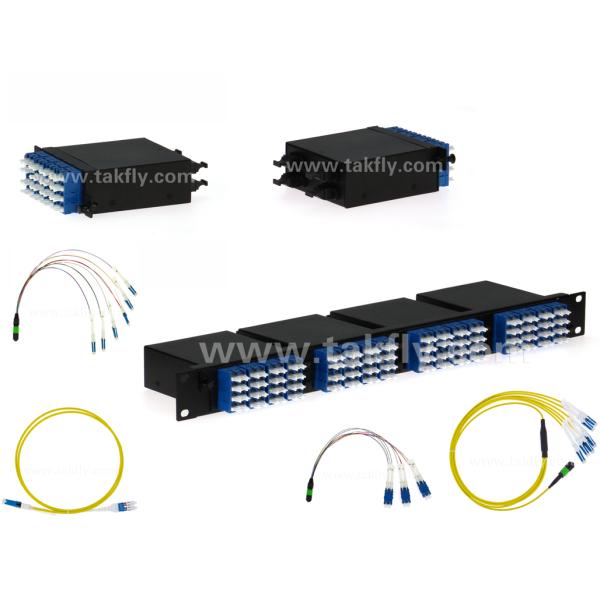

512C 1U 256F Fiber Optic Patch Panel MPO CS FTTH Patch Panel Images |
