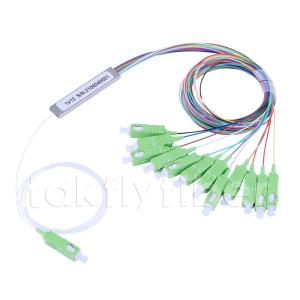

900μm Mini Fiber Optic PLC Splitter 1x12 SC APC SM G657A For FTTH FTTX GPON EPOM
Fiber Optic PLC Splitter Description
Fiber Optic PLC Splitter is Based on the Planar Waveguide Technology. It Provides a Low Cost Power Distribution Solution with Small Form Factor and High Reliability, wide operating wavelength range and good channel-to channel uniformity, and is widely used in PON net.
Fiber Optic PLC Splitter Feature
● Broadband Operation Wavelength
● Low Insertion loss
● Low PDL
● Compact Design
● Good channel-to-channel uniformity
● High Reliability and Stability
Fiber Optic PLC Splitter Applications
● Telecommunication sector
● PON Syster
● FTTH
● CATV
● Video Transmission
Fiber Optic PLC SplitterSpecification
| Item | Parameter |
| Operating Wavelength(nm) | 1260 ~ 1650 |
| Type(1*N) | 1*3 | 1*6 | 1*12 |
| Max Insertion Loss (dB) | 6.2 | 9.1 | 12.5 |
| Max.Uniformity(dB) | 0.8 | 1.0 | 1.0 |
| Min.Return Loss(dB) | 55 |
| Max.PDL(dB) | 0.2 | 0.3 | 0.3 |
| Fiber Type | ITU-T G657A1 , G657A2 and G.652D |
| Max.Temperature Stability(dB) | 0.5( Typical 0.3 ) |
| Operating Temperature(℃) | -40 ~ +85 |
| Storage Temperature(℃) | -40 ~ +85 |
All measurement are made at room temperature, and connectors not included
With 21 years manufacturing experince in Fiber Optic Products, Takfly Group have a wide of PLC Splitters for your option, such as 250μm bare fiber PLC Splitter, 900μm mini steel tube PLC Splitter, ABS Box PLC Splitter, LGX Cassette type PLC Splitter, Rack Mount PLC Splitter, ect.
Takfly PLC Splitters have below advantages:
1. CE, ROHS, ISO9001, ISO14001 certified.
2. High performance, low insertion loss.
3. Branch Numbers from 1x2, 1x4, 1x8, 1x16, ....1x128, and 2x2, 2x4, 2x8, 2x16, 2x32, ......2x128, also with Non-standard 1x3 1x6 1x12 for options.
4. OEM Brand is availble.
If you’re dealing with FTTX, FTTH projects, welcome to inquire us for more details.
