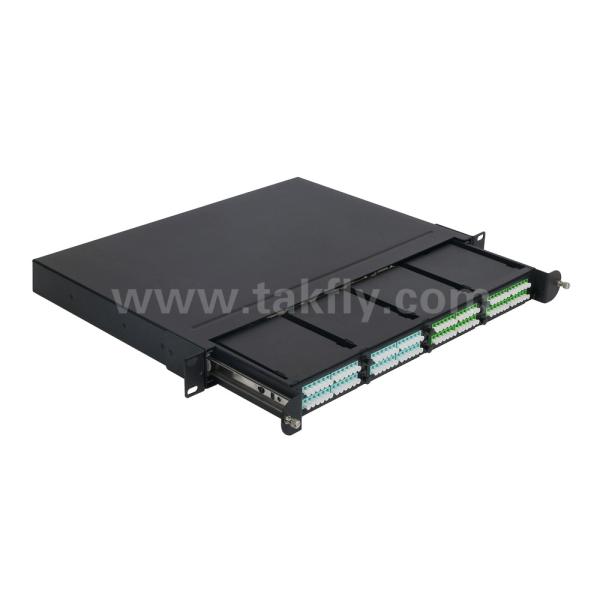

1U Rack Mount 24F MPO-LC MTP Patch Panel High Density 96F For Data Center

Brand Name : Takfly/OEM

Model Number : TK-HRS-1096E

Certification : ISO9001:2015

Place of Origin : Shenzhen China

MOQ : 1

Price : USD 32.86

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000 pieces per week

Delivery Time : 1~3 days

Packaging Details : Carton box

Height : 1U

Fiber count : 96F

Cassette : 4*24F MPO-LC

Size(L*W*H) : 483*310*44.5mm

Adapter Panel : Support 24*LC ports/12*SC ports/6*MPO ports adaptor panel

Contact Now

1U 19 inch MPO/MTP high-density rack-mount fiber patch panel is designed for large data center rooms: MDF application, fiber distribution unit management, and other high-density integrated optical fiber environments, etc. It is installed in 19 inch racks and cabinets.
1U 19 inch MPO/MTP patch panel could load 4 pre-connected cassette modules, and the maximum capacity can be managed is 1152 cores for MPO interface or 96 cores for LC interface. Each independent pre-terminated module box is placed in the optical fiber distribution frame, to complete the full set patch panel.
Application
  • Optical fiber communication dense wiring system between buildings
  • Optical link interconnection in optical active equipment for LAN cabling
  • Telecommunication base station
  • Data center room of industrial area
  • Data center room of commercial building
  • CATV
  • LAN
  • WAN
  • FTTX

Features

  • New brand high quality aluminum alloy material
  • Installed in 19 inch rack mount and cabinet, application for cassette modules centralized management.
  • 1U high-density size capacity 96 fibers for LC interface
  • Male or Female MPO/MTP connectors are available. Connected and positioned by PIN and adaptor to achieve precise and high stable connection
  • Modular design, plug-in locking structure, the fiber has a clear line sequence identification, easy to test, install, remove and adjust the mating
  • The cassette module and patch panel are small in size, lightweight, impact resistant, high pressure, flame retardant, corrosion resistant, strong structure to protect the internal optical fiber, ultra-high sealing performance to facilitate dust-proof, innovative design for advanced network equipment
specifications
Fiber type
SM (G652, G655,G657); MM (OM1-OM5)
Connector Male(Pin needle), Female LC
MPO/MTP
Cable Diameter(mm) 0.9/0.6
Insertion loss(dB)

Standard: ≤0.35/0.7(Typical/Max)

Low Loss: ≤0.2/0.35(Typical/Max)

 ≤0.3
Return loss (Min)
APC SM:60dB
PC MM: 20dB
UPC SM: 40dB
APC SM: 60dB
Test Wavelength (nm)
SM: 1310/1550
MM: 850/1300
Repeatability
≤ 0.1dB
Durability
≤ 0.2dB
Interchangeability
≤ 0.2dB
Bending radius (Dynamic/static)
Min 40mm
Product name
Racks
Cassette module
Size (L*W*H)
483*310*44.5mm
86*120*36.9mm
Product model
TK-HRS-1096E
TK-HRM-05
Material
Aluminum
