1x2/ 2x2 Singe mode Fused Biconic Fiber Coupler for Optical Communication

Brand Name : DF/OEM/Nuetral

Model Number : 1x2/ 2x2 Singe mode Fused Biconic Fiber Coupler for Optical Communication

Certification : CE/ROHS/REACH/ISO9001/ISO14001

Place of Origin : China, Shenzhen

MOQ : negotiable

Price : negotiable denpend on QTY

Payment Terms : Western Union,T/T,MoneyGram/Paypal

Supply Ability : 1000PCS/Day

Delivery Time : 5-9 working days depends on QTY

Packaging Details : Blister box+Carton

Product Name : 1x2/ 2x2 Singe mode Fused Biconic Fiber Coupler for Optical Communication

Operation Wavelength (nm) : 1310 and 1550 nm

Operating bandwidth (nm) : ±40

Insertion loss（50/50）） : ≤3.6dB

PDL (50/50)(dB) : ≤0.2dB

Directivity (dB) : >=55

Operating Temperature : -40℃~+85℃

Fiber Type : G657A

Fiber Brand : Corning, YOFC, OFS, Draka

Contact Now

1x2/ 2x2 Singe mode Fused Biconic Fiber Coupler for Optical Communication
1x2/ 2x2 Singe mode Fused Biconic Fiber Coupler for Optical Communication
1x2/ 2x2 Singe mode Fiber Coupler Applications
  • Optical communication systems
  • CATV
  • FTTH
  • Testing instruments
1x2/ 2x2 Singe mode Fiber Coupler Features
  • Low excess loss
  • Low PDL
  • High stability
  • High reliability

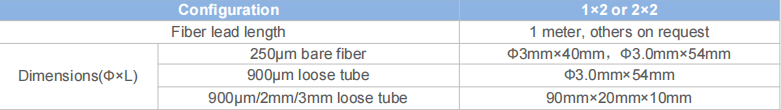

1x2/ 2x2 Singe mode Fiber Coupler Specifications

Product Description

P

A

Operation Wavelength (nm)

1310 and 1550

Operating bandwidth (nm)

±40

Insertion Loss(dB)

50/50

≤3.4 /3.4

≤3.6/3.6

40/60

≤4.4/2.5

≤4.6/2.7

30/70

≤5.7/1.8

≤5.9/2.0

20/80

≤7.5/1.2

 ≤7.7/1.4

10/90

≤10.8/0.7

≤11.5/0.8

5/95

≤14.6/0.4

≤15.7/0.5

2/98

 ≤19.0/0.3 ≤19.5/0.4

1/99

≤21.0/0.25

≤21.5/0.35

Uniformity (50/50) (dB)

≤0.15

≤0.2

Directivity (dB)

≥55

Operating Temperature℃

-40 ~ +85

Fiber Type

G657A
Note: All insertion loss and insertion loss referenced without connectors.
1x2/ 2x2 Singe mode Fiber Coupler Pictures
1x2/ 2x2 Singe mode Fused Biconic Fiber Coupler for Optical Communication
Packaging
1x2/ 2x2 Singe mode Fused Biconic Fiber Coupler for Optical Communication
Why Choose TAKFLY?
  • With more than 26+ years manufacturing experience in Fiber optic products
  • More than 450 assembly workers with 3 years experience
  • More than 10 R&D Engineers
  • 16 Sets Germany imported Injection Machine and 16 Production Lines
  • More than 30 sets of Testing Machines: OTDR, 3D, VFL, IL&RL test instrument; tension strength tester, Crush Resistance tester, Power meter tester, light checker, etc.
  • OEM Brand is acceptable
  • Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Source Electronic Exhibition, etc.
Quality Control
  • Spot check the raw material incoming inspection before production
  • Fully check after every individual process finished
  • Fully check production half done
  • Fully check the finished products before packing
  • Spot check before shipping
Delivery
  • Samples: 1-3 working days
  • Mass Production Order: 3-7 working days
  • Packaging: Plastic Bag, Carton and Pallet are available according to your request
Frequently Asked Questions
Q1: How can I get your catalogue and price list?
A1: Please let us know your email or contacts from website directly for our catalogue and price list
Q2: Can I negotiate the prices?
A2: Yes, we may consider discounts for multiple container load of mixed goods
Q3: How much will the shipping charges be?
A3: It depends on the size of your shipment and the method of shipping. We will offer the charge to you as you requested
Q4: Can I visit you?
A4: Sure, our factory is in Shenzhen, China. Please contact us to make an appointment
Q5: What if there is quality problem when we get the goods?
A5: If there is quality problem when you un-package the goods, you can take pictures for our reference, our QC department will check the problem and give best solutions to you. Furthermore we will also take action to improve the quality in future
Q6: What is your terms of packing?
A6: Generally, we pack our goods in blister box and cartons, and can also accept customize packing by customers
Q7: What is your terms of payment?
A7: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance
Q8: What is your terms of delivery?
A8: EXW, FOB, CFR, CIF, DDU
Q9: How about your delivery time?
A9: Generally, it will take 5-7 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order
Q10: Can you produce according to the samples?
A10: Yes, we can produce by your samples or technical drawings
If you're interested in our products or have any doubt, feel free to contact me at any time!
